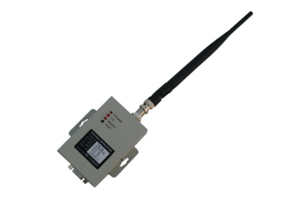

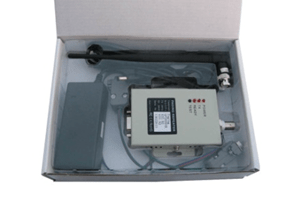

POCSAG – GP2009TR

£159.00 ex. VAT

It can be a pager transmitter, also can be a pager repeater for POCSAG paging system.

Work as a pager transmitter in wireless paging system.
The pager transmitter GP2009TR has up to 1km (diameter) coverage with signal booster. If you want to build a wireless communication region within this rang, it is a good choice to use our paging software or yours (as it is a flexibility system), text messages can be sent to the pager easily.

Works as a signal repeater in wireless paging system. Fix the transmitter in a suitable place, then it boosts the signal for communications.

In stock

SKU: POCSAG-GP2009TR Category: Tag:

Description

Features:

  • Software Supported, you can use our software or yours, simple interface to use
  • Flexible to fit any system
  • 7-20V DC power support
  • USB or RS-232 port supported
  • Frequency range TX: 420-470 MHz
  • Frequency range RX: 420-470 MHz
  • TX Power 2W Max
  • Can be used as a encoder to fit other transmitter
  • Repeater function
  • Provide protocol for the secondary development
  • Very high quality, 2 years warranty

Additional information

Weight 0.230 kg
Dimensions 110 × 62 × 22 mm
Frequency Range RX

420-470Mhz

Frequency Range TX

420-470Mhz

Modulation Type

FSK

Channel Spacing

12.5KHz, 25KHz

Output Power

2W max

Receiver Sensitivity

-103Db

Harmonic Radiation

less -25dBm

Output Connect

BNC

Current Consumption Standby

40mA

Receive

40mA

Transmit

<1A
